Toru Seo, Kemin Qi, Chuchun Chang, Ying Liu, Tilla S. Worgall, Rajasekhar Ramakrishnan, Richard J. Deckelbaum
Published in Volume 115, Issue 8
J Clin Invest. 2005; 115(8):2214–2222 doi:10.1172/JCI24327
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

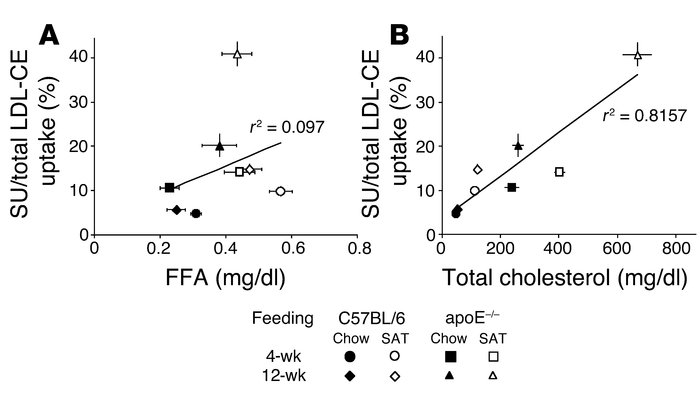

Figure 4

Relationship between plasma FFA and cholesterol levels and changes in arterial SU. Averaged plasma FFA (A) and cholesterol levels (B) from C57BL/6 and apoE–/– mice in each diet group were plotted against the contribution of percent SU to total arterial LDL-CE delivery. x- and y-axis error bars show SEM of the mean in each group (n = 13–30 for each point).
