Richard C. Bates, David I. Bellovin, Courtney Brown, Elizabeth Maynard, Bingyan Wu, Hisaaki Kawakatsu, Dean Sheppard, Peter Oettgen, Arthur M. Mercurio
Published in Volume 115, Issue 2
J Clin Invest. 2005; 115(2):339–347 doi:10.1172/JCI23183
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 2

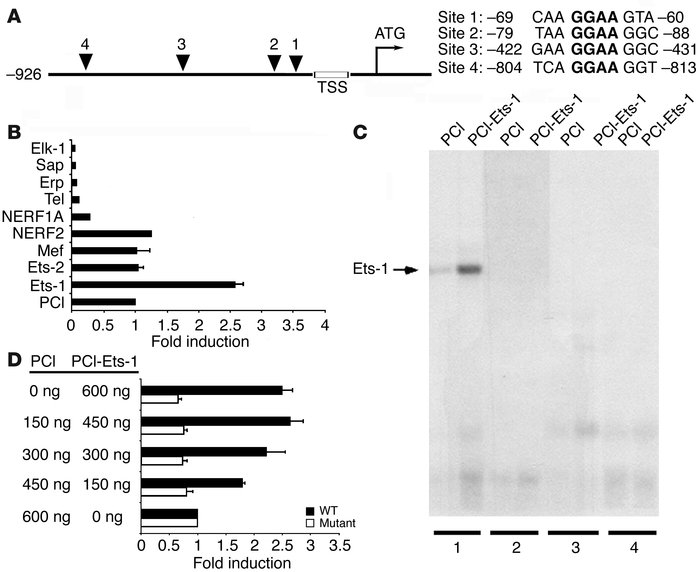

Transcriptional regulation of β6 by the Ets-1 transcription factor. (A) Schematic of the human integrin β6 promoter. The transcription start site (TSS) and translation start site (ATG) are indicated. Putative Ets-binding sites are shown (triangles), and the 4 corresponding sequences are listed, including location detail. The consensus DNA-binding sequence (GGAA) is shown in bold. (B) Transactivation of the β6 luciferase reporter construct (–926/+208) by a panel of Ets transcription factors compared with the empty mammalian expression plasmid (PCI) in HEK293 cells. The change in luciferase activity is expressed as fold induction compared with PCI. (C) Gel mobility shift assay for Ets-1 binding to putative Ets sites in the β6 promoter. In vitro–translated Ets-1 protein or control extract was used with end-labeled oligonucleotide probes encoding putative Ets sites 1–4, as indicated. (D) Mutational analysis of the β6 promoter. Transactivation of either the wild-type (black bars) or mutant Ets-1–binding site –66/–63 (white bars) β6 luciferase reporter constructs in response to increasing doses of Ets-1 is shown.
