Joel G.R. Weaver, Agathe Tarze, Tia C. Moffat, Morgane LeBras, Aurelien Deniaud, Catherine Brenner, Gary D. Bren, Mario Y. Morin, Barbara N. Phenix, Li Dong, Susan X. Jiang, Valerie L. Sim, Bogdan Zurakowski, Jessica Lallier, Heather Hardin, Peter Wettstein, Rolf P.G. van Heeswijk, Andre Douen, Romano T. Kroemer, Sheng T. Hou, Steffany A.L. Bennett, David H. Lynch, Guido Kroemer, Andrew D. Badley
Published in Volume 115, Issue 7
J Clin Invest. 2005; 115(7):1828–1838 doi:10.1172/JCI22954
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 8

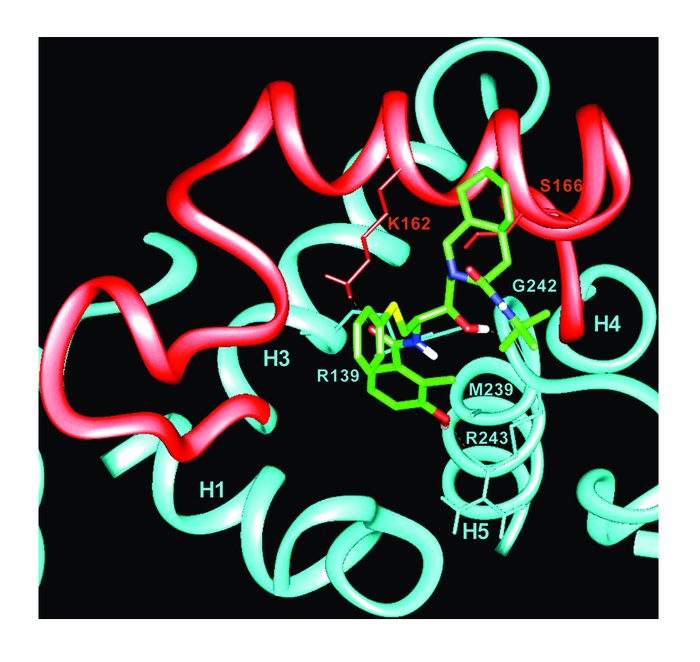

Computer-simulated model of NFV interaction with ANT. Close-up of the proposed binding mode of NFV to the matrix side of ANT. Parts of helices 1, 3, 4, and 5 (H1, H3, H4, and H5) are shown. Loop M2, connecting helices 3 and 4, is shown in red. Hydrogen bonds are displayed as dotted lines. Side chains or backbone atoms of selected residues are shown (see Methods). The PI is colored according to atom types: C, green; O, red; N, blue; S, yellow.
