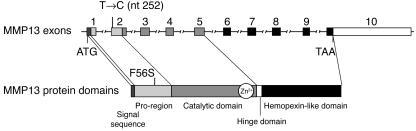

Figure 4

Schematic representation of the genomic structure of the MMP13 gene illustrating locations of the SEMDMO mutation and protein domains. The 1,413-bp MMP13 coding region yields a 471–amino acid preproenzyme. The signal sequence consists of 19 amino acids that are removed on processing and are not present in the secreted proenzyme (15, 16). The pro- and catalytic domains comprise 84 and 166 amino acids, respectively. The catalytic domain has a zinc-binding motif (HEXXHXXGXXH) that contains 3 histidine residues that bind the catalytic zinc ion at the active site (15, 16, 19, 36). The proregion contains a cysteine residue (Cys77) that ligates this catalytic zinc ion to maintain the latency of proMMP13. An 11–amino acid proline-rich linker peptide (hinge domain) connects the catalytic domain and hemopexin domain, which consists of 191 amino acids. The position of the T→C transition at nucleotide 252 of exon 2, detected in the SEMDMO kindred (Figure 2) and found to result in the F56S mutation (Figure 5) in the proregion, is shown. The shading or hatching of each protein domain indicates its exonic origins.
