Janakiraman Krishnamurthy, Chad Torrice, Matthew R. Ramsey, Grigoriy I. Kovalev, Khalid Al-Regaiey, Lishan Su, Norman E. Sharpless
Published in Volume 114, Issue 9
J Clin Invest. 2004; 114(9):1299–1307 doi:10.1172/JCI22475
Abstract | Full text | PDF | Supplemental material
Options: View larger image (or click on image)
Medium

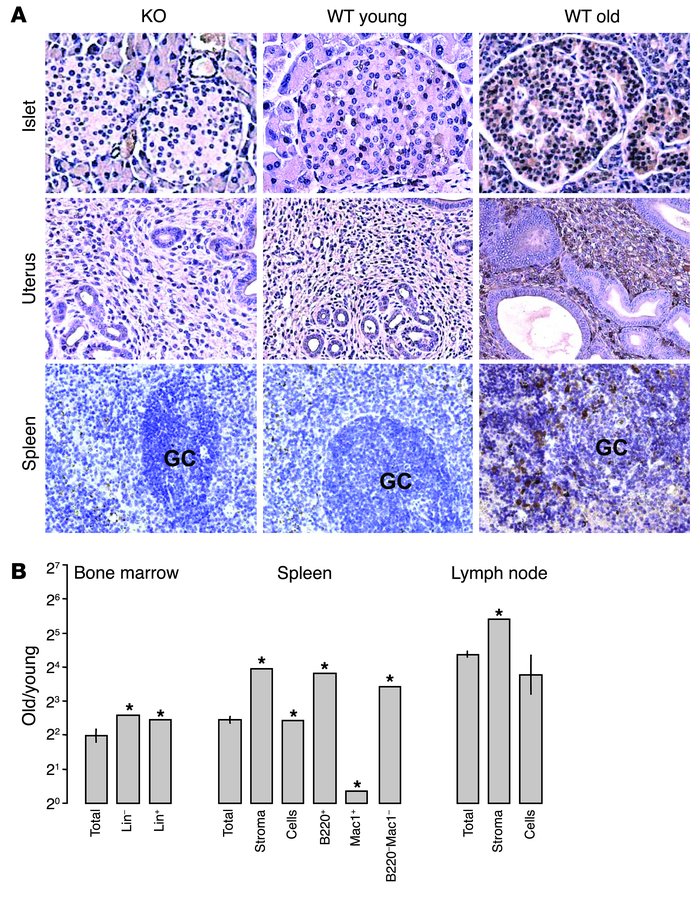

Figure 2

p16INK4a expression in specific compartments by immunohistochemistry and cell purification. (A) Immunoperoxidase staining performed on paraffin-embedded sections of germ-line p16INK4a-deficient (KO), WT young (3.5 months), and WT old (25 months) murine tissues using an anti-p16INK4a antibody. Positively staining cells demonstrate both nuclear and cytoplasmic expression. GC, germinal center. (B) Relative expression ratios (old/young, log2 scale) of p16INK4a in specific compartments (average purity >94% for all fractions) of bone marrow (lin, 2%; lin+, 97%), spleen (B220+, 48%; Mac1+, 9%; B220Mac1, 22%), and lymph node. Asterisks indicate that p16INK4a expression was undetectable in these cell populations from young mice, and therefore a minimum estimate of the fold increase is shown.
