Naoto Kubota, Yasuo Terauchi, Kazuyuki Tobe, Wataru Yano, Ryo Suzuki, Kohjiro Ueki, Iseki Takamoto, Hidemi Satoh, Toshiyuki Maki, Tetsuya Kubota, Masao Moroi, Miki Okada-Iwabu, Osamu Ezaki, Ryozo Nagai, Yoichi Ueta, Takashi Kadowaki, Tetsuo Noda
Published in Volume 114, Issue 7
J Clin Invest. 2004; 114(7):917–927 doi:10.1172/JCI21484
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 1

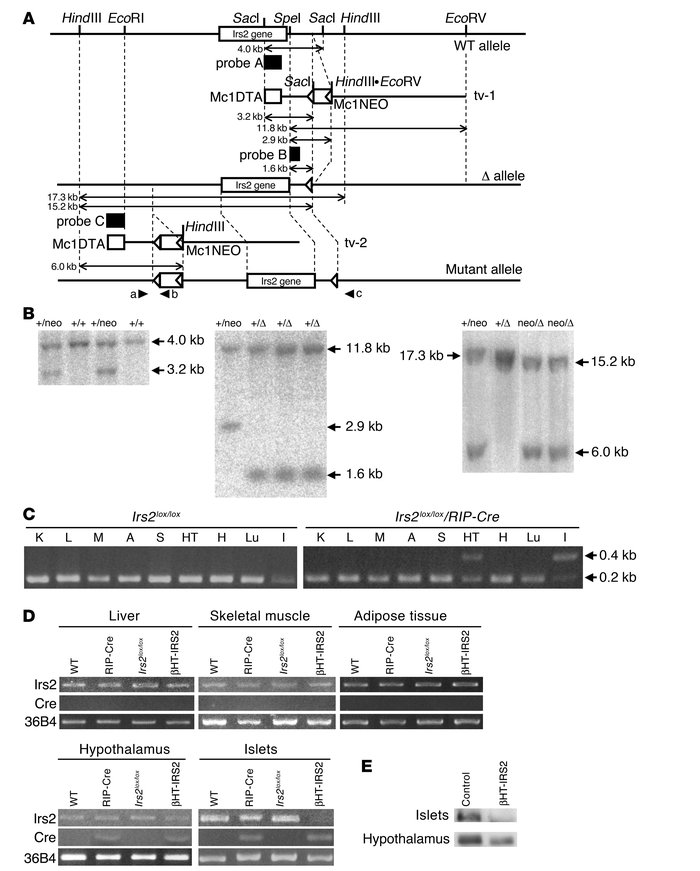

Generation of βHT-IRS2 mice. (A) Schematic representation of the 3 steps in our gene-targeting strategy. (B) Southern blot analysis. Left: SacI-digested ES cell genomic DNA hybridized with probe A. The 4-kb band corresponds to the WT (+) allele, and the 3.2-kb band to the first step of the mutant (neo) allele. Middle: SpeI- and EcoRV-digested ES cell genomic DNA hybridized with probe B. The 11.8-kb band corresponds to the WT (+) allele, the 2.9-kb band to the (neo) allele, and the 1.6-kb band to the second step of the mutant (Δ) allele. Right: HindIII-digested ES cell genomic DNA hybridized with probe C. The 17.3-kb band corresponds to the WT (+) allele, the 15.2-kb band to the mutant (Δ) allele, and the 6-kb band to final step of the mutant (neoΔ) allele. (C) PCR analysis of genomic DNA to detect Cre-mediated recombination. K, kidney; L, liver; M, muscle; A, adipose tissue; S, spleen; HT, hypothalamus; H, heart; Lu, lung; I, islet. (D) RT-PCR of Cre and Irs2 expression in liver, skeletal muscle, adipose tissue, hypothalami, and pancreatic islets of WT, RIP-Cre, IRS2lox/lox, and IRS2lox/lox/RIP-Cre (βHT-IRS2) mice. (E) Western blot analysis of Irs2 in pancreatic islets (upper panel) and hypothalami (lower panel) from control and βHT-IRS2 mice.
