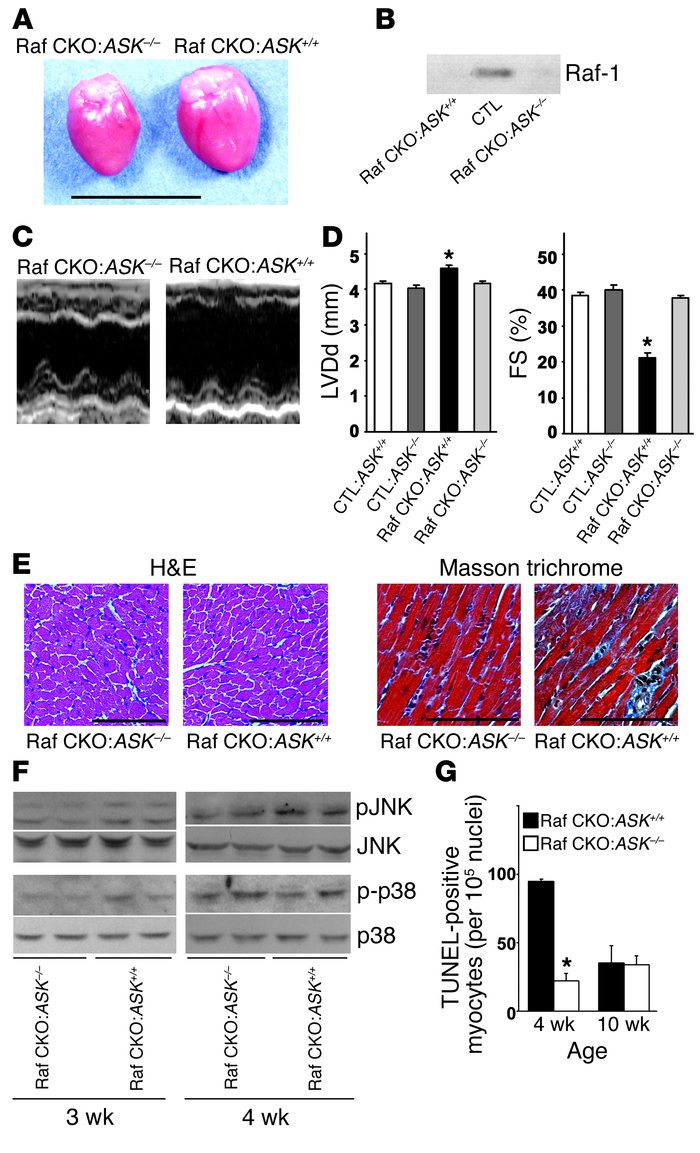

Figure 6

Prevention of cardiac dysfunction in Raf-1/ASK1 double-knockout mice. (A) Photographs of hearts removed from c-raf-1flox/flox:α-MHCCre(+):ASK+/+ (Raf CKO:ASK+/+) and Raf-1/ASK1 double-knockout, c-raf-1flox/flox:α-MHCCre(+):ASK–/– (Raf CKO:ASK–/–) mice at 10 weeks of age. (B) Western blot analysis of Raf-1 in the hearts of CTLs, Raf CKO:ASK+/+, and Raf CKO:ASK–/– mice. (C and D) Echocardiographical analysis of hearts at 10 weeks of age. (C) Transthoracic M-mode echocardiographic tracings. (D) FS and diastolic left ventricle internal dimension (LVDd) in Raf CKO:ASK+/+ mice (n = 8) and Raf CKO:ASK–/– mice (n = 7). The parameters in c-raf-1flox/flox:α-MHCCre(–):ASK+/+ (CTL:ASK+/+) mice (n = 6) and c-raf-1flox/flox:α-MHCCre(–):ASK–/– (CTL:ASK–/–) mice (n = 6) are also shown as reference. *P < 0.05 versus each group. (E) Cardiac histological analysis of the Raf-1/ASK1 double-knockout mice. Microscopic H&E-stained and Masson trichrome_stained sections of hearts from Raf CKO:ASK+/+ and Raf CKO:ASK–/– mice. (F) The phosphorylation level of JNK or p38 was assessed by immunoblotting with anti-phosphospecific antibody in Raf CKO:ASK–/– and Raf CKO:ASK+/+ hearts at 3 and 4 weeks of age. (G) The number of TUNEL-positive cells in Raf CKO:ASK–/– and Raf CKO:ASK+/+ hearts at 4 and 10 weeks of age. *P < 0.05 versus Raf CKO:ASK+/+ at the same age. Scale bar: 10 mm (A), 100 μm (E).
