James D. Johnson, Noreen T. Ahmed, Dan S. Luciani, Zhiqiang Han, Hung Tran, Jun Fujita, Stanley Misler, Helena Edlund, Kenneth S. Polonsky
Published in Volume 111, Issue 8
J Clin Invest. 2003; 111(8):1147–1160 doi:10.1172/JCI16537
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

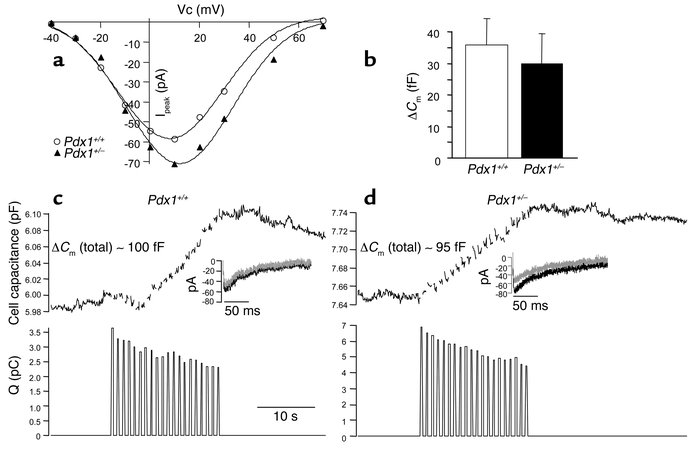

Figure 4

Single-cell exocytosis and voltage-gated Ca2+ currents are not altered in β cells from PDX1 transgenic mice. (a) A representative I/V curve made from consecutive (same-day) recordings of two Pdx1+/– and two Pdx1+/+ cells is shown. Analysis of voltage-gated Ca channels was performed on cells dispersed from six Pdx1+/+ and six Pdx1+/– mice. VC, voltage. (b) Stimulated exocytosis is intact in Pdx1+/– β cells. Results from both standard and TEA-treated conditions were pooled, and these results are summarized (n = 33 for Pdx1+/+; n = 30 for Pdx1+/–). Cm, membrane capacitance. Examples of changes in capacitance evoked by a train of 20 depolarizations (200 ms) from a holding potential of –70 mV to +10 mV in patch-clamped cells from Pdx1+/+ (c, top panel) and Pdx1+/– (d, top panel) islets. Recordings were made using a Cs+ pipette, with 30 mM TEA in the bath to simultaneously measure voltage-gated Ca2+ currents. Integrated Ca2+ charge entry is shown for each depolarization (bottom panels). Ca2+ current traces are shown for the first and 20th depolarizations (insets). Q(pC); charge entry; fF, femto Ferad.
