Jake A. Kushner, Jing Ye, Markus Schubert, Deborah J. Burks, Matthew A. Dow, Carrie L. Flint, Sanjoy Dutta, Christopher V.E. Wright, Marc R. Montminy, Morris F. White
Published in Volume 109, Issue 9
J Clin Invest. 2002; 109(9):1193–1201 doi:10.1172/JCI14439
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

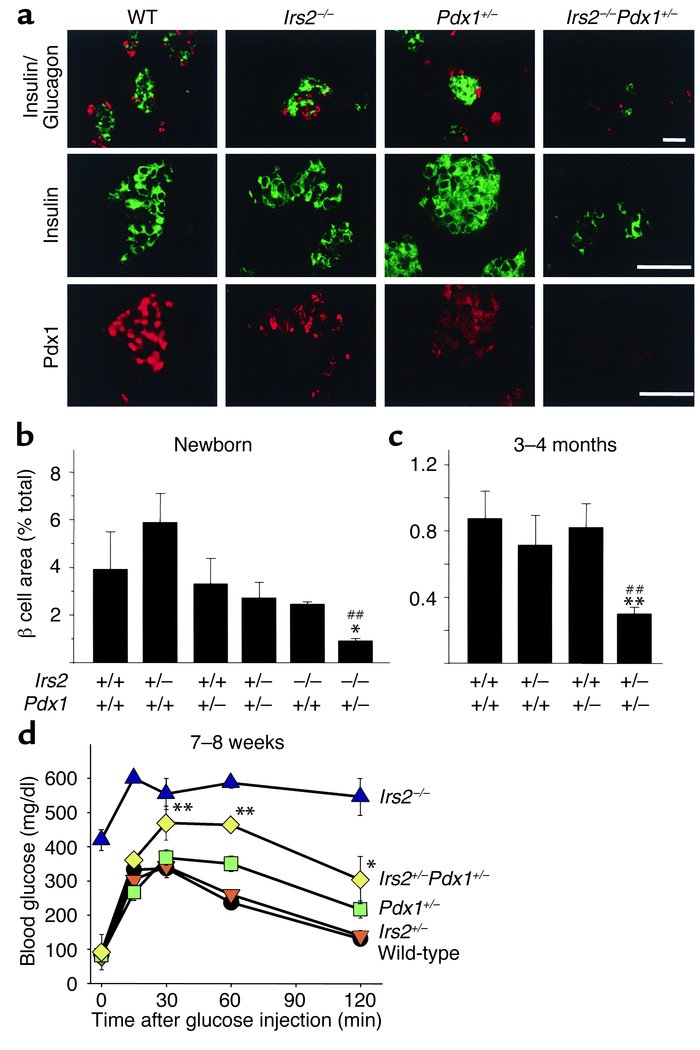

Figure 3

Islet morphology and quantification from Irs2+/–Pdx1+/– intercross mice and glucose tolerance tests of adult Irs2+/–Pdx1+/– intercross mice. (a) Representative islet morphology from pancreas of newborn Irs2+/–Pdx1+/– intercross pups immunostained with antibodies against insulin (green) and glucagon (red, top panels), insulin (green, middle panels), and Pdx1 (red, bottom panels). Scale bars, 50 μm. (b) β Cell area of newborn male and female progeny from Irs2+/–Pdx1+/– intercross pups (mean ± SEM relative to total pancreas area). Irs2–/–Pdx1+/– pups have decreased β cell area compared with wild-type, Irs2–/–, or Pdx1+/– (*P < 0.05, ##P < 0.01). (c) Morphometric analysis of pancreas sections of 3- to 4-month-old male progeny from the Irs2+/–Pdx1+/– intercross. Results are reported as mean ± SEM of β cell area (percent relative to total pancreas area). At 3–4 months, Irs2+/–Pdx1+/– mice have decreased β cell area compared with wild-type (**P < 0.01) or Pdx1+/– (##P < 0.01). (d) Glucose tolerance tests of 7- to 8-week-old mice performed with 2 g D-glucose per kg body weight after a 15- to 16-hour fast (wild-type, n = 6; Irs2+/–, n = 11; Pdx1+/–, n = 9; Irs2+/–Pdx1+/–, n = 11; Irs2+/–Pdx1+/–, n = 17; Irs2–/–, n = 4). Results are reported as mean ± SEM. *P < 0.05, Irs2+/–Pdx1+/– vs. Pdx1+/–; **P < 0.01, Irs2+/–Pdx1+/– vs. Pdx1+/–.
