Toshio Miyata, Reiko Inagi, Masaomi Nangaku, Toshiyuki Imasawa, Masahiro Sato, Yuko Izuhara, Daisuke Suzuki, Atsusi Yoshino, Hiroshi Onogi, Minoru Kimura, Satoshi Sugiyama, Kiyoshi Kurokawa
Published in Volume 109, Issue 5
J Clin Invest. 2002; 109(5):585–593 doi:10.1172/JCI14336
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

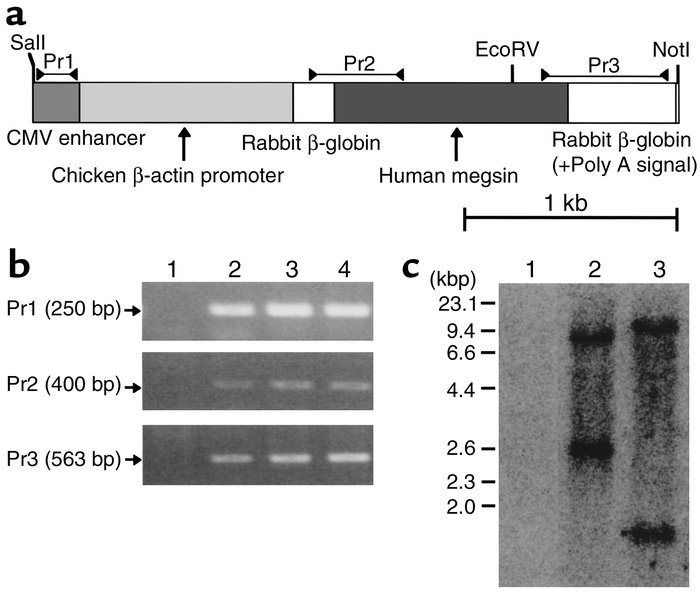

Figure 1

Generation and characterization of human megsin transgenic mice. (a) Megsin transgene construct. Full-length human megsin cDNA was subcloned in the rabbit β-globin gene including a part of the second intron, the third exon, and the 3′ untranslated region. The positions of primers for PCR analysis are indicated above the construct. (b) Identification of human megsin transgene by PCR of genomic DNA. Lane 1, a wild-type mouse DNA; lane 2, a wild-type mouse DNA with one copy of megsin transgene added; lane 3, F0 megsin transgenic DNA (line A); lane 4, F0 megsin transgenic DNA (line B). (c) Identification of human megsin transgene by genomic Southern blot analysis. Southern blot analysis after EcoRV digestion of genomic DNA. Lane 1, a wild-type mouse DNA; lane 2, F0 megsin transgenic DNA (line A); lane 3, F0 megsin transgenic DNA (line B). Approximately 9.0 kb and 2.6 kb of fragments in line A and 10.0 kb and 1.5 kb of fragments in line B, but not endogenous murine megsin genome, are detected with human megsin transgene probe.
