Michael Leitges, Manuel Mayr, Ursula Braun, Ursula Mayr, Chaohong Li, Gerald Pfister, Nassim Ghaffari-Tabrizi, Gottfried Baier, Yanhua Hu, Qingbo Xu
Published in Volume 108, Issue 10
J Clin Invest. 2001; 108(10):1505–1512 doi:10.1172/JCI12902
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium
Figure 4

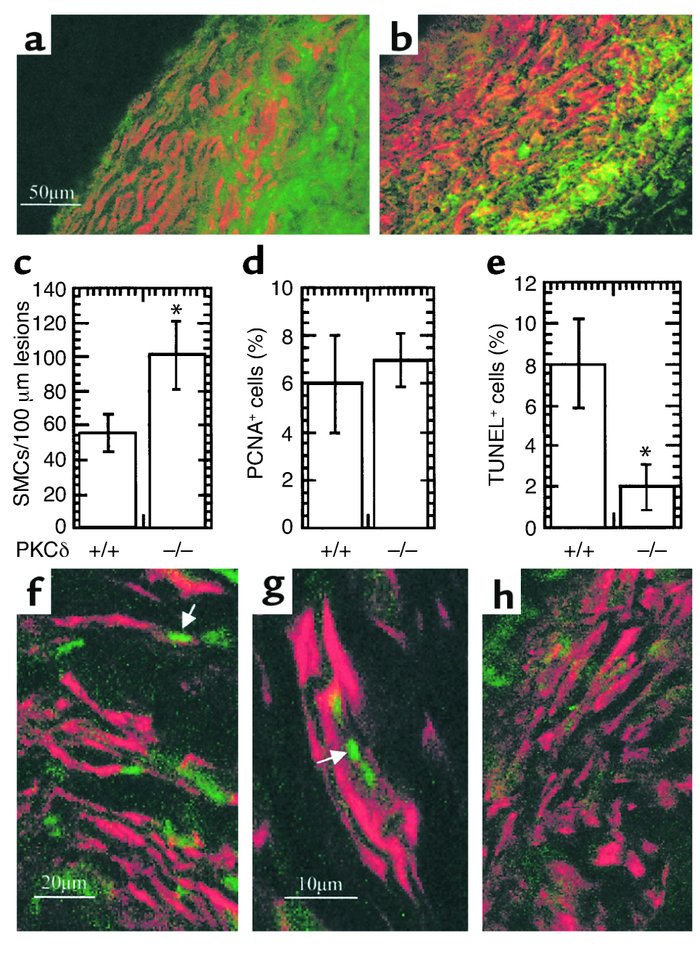

Immunofluorescence double labeling of vein graft sections (a and b). Cryostat sections from mouse vein grafts 8 weeks after surgery were fixed with cold 5% acetone/methanol for 30 minutes, air-dried, and incubated with a rat monoclonal antibody to mouse MAC-1, and then visualized by anti-rat Ig-FITC-conjugated rabbit Ig. After washing, sections were incubated with mouse monoclonal antibody against α-actin conjugated with Cy3 for 30 minutes at room temperature. The sections were examined by laser confocal microscopy. (c and d) Statistical data are means ± SEM of percentage of positive cells. Sections were labeled with α-actin antibody/Cy3 or rabbit anti-PCNA antibodies. Nuclei were stained with Hoechst 33258 (1 μg/ml). Positive cells and total nuclei were counted by microscopy. (eh) TUNEL staining of vein grafts of PKCδ+/+ (eg) and PKCδ–/– (e and h) mice. Vein grafts were harvested 8 weeks after surgery, and frozen sections were prepared and stained with TUNEL as described in Methods. Arrows indicate typical examples of TUNEL+ cells in lesions. (e) Statistical data are means ± SEM of three independent experiments, *P < 0.05.
