Keith L. Knutson, Kathy Schiffman, Mary L. Disis
Published in Volume 107, Issue 4
J Clin Invest. 2001; 107(4):477–484 doi:10.1172/JCI11752
Abstract | Full text | PDF
Options: View larger image (or click on image)
Medium

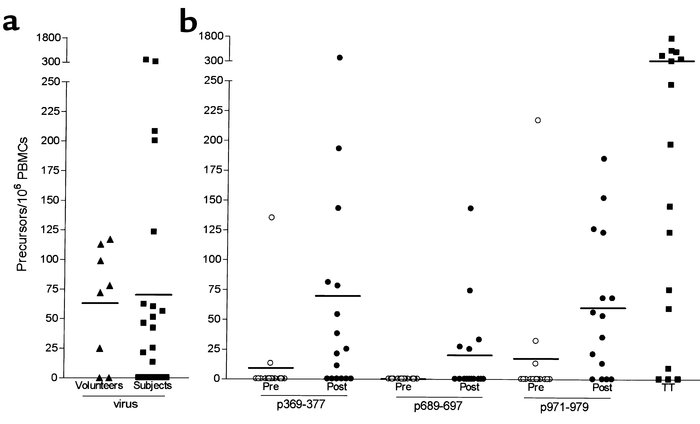

Figure 3

Patients immunized with a 15-aa HER-2/neu vaccine increase T-cell precursors to the encompassed HLA-A2 9-aa peptides. (a) Combined ELIspot responses (precursors/106 PBMCs) to HLA-A2–binding epitopes of influenza and CMV virus are shown. Data are from normal HLA-A2 volunteers (triangles) and study subjects (squares), with the mean delineated by a bar. (b) Preimmunization and maximal postimmunization ELIspot responses (precursors/106 PBMCs) to the HLA-A2 HER-2/neu peptides, p369–377, p689–697, p971–979, in subjects are shown. For comparison, the maximal responses to TT are shown. Each symbol represents a measurement from a single unique subject, calculated on six replicates.
